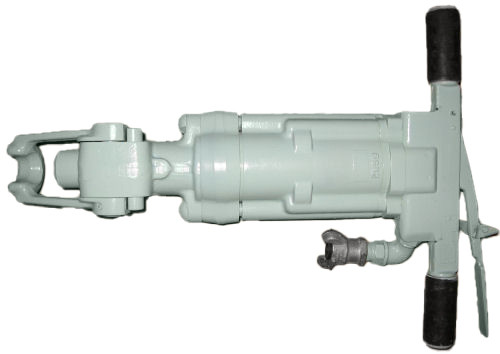

Pneumatic Air Rock Drill Sullair MRD-50 Rockdrill

Designed to Provide Operator Protection and Trouble-free Performance

Dead Man Safety Handle

The Sullair drills are designed so that the tool automatically stops operating when the operator releases the throttle lever.

One Control for Drilling and Blowing

The single throttle lever controls all tool functions from off, to blowing only, to progressive drilling speeds.

Variable Throttle Control

Allows stepless speed control for maximum drilling production.

Continuous Hole Cleaning

Blowing air is directed through the drill rod at all drilling speeds to clear debris from the hole.

Direct Rotation of the Piston

This feature reduces torque loss and eliminates wearing parts, such as the rifle bar assembly.

Less Maintenance

The unique design of the Sullair drills eliminates many high wear parts. This means less loss of power due to wear, less downtime to replace worn parts and lower overall maintenance costs.

Minimal Lubrication Required

With only two parts moving during operation, a non-corrosive distribution valve, less radial piston movement and high tech alloys, the Sullair drills do not require special rock drill oil. Normal oil carry-over from the compressor, combined with moisture in the air, will usually provide sufficient lubrication under normal operating conditions.

Oil Reservoir

A built-in oil reservoir assures direct lubrication to rotating parts. Use of standard 90-140 weight gear lubricant extends the life of critical parts.
