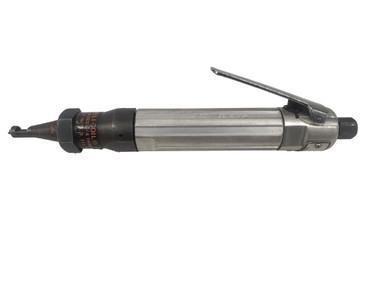

Pneumatic Helicoil Tool 8542-1 Size 4 thru 1/4" STD & S/L 6-32

HeliCoil Power Tools are specially designed for use in high volume production. The advantages of using them lie not only in their speed of operation but also in their accuracy and precision during insert installation. They can minimize production costs by dramatically reducing the time needed for installing large quantities of HeliCoil screw thread inserts.

Completely rebuilt Pneumatic Helicoil Tool

Size Range: 4 thru 1/4" STD & S/L

Current Set Up: 6-32

Lever Throttle

Non-Reversible

Air Inlet: 1/8" NPT

Recommended Air Pressure: 90 Psi

Recommended Air Line: 3/8"

This Power Tool speeds up installation speed & assembly, eliminates waste, and permits an accurate count of inserts. It allows for rapid installation of both standard free running and screw-lock inserts.

It can be hand held, vertically or horizontally mounted onto a Pneumatic Power Tool Holder, or adapted to both semi-automatic and fully automatic installation stations.

The threaded mandrel system of the Pneumatic Power Tool eliminates the possibility of cross threading or jamming of the wire insert during installation as the insert is pitch controlled as it moves from the tool to the workpiece via the threaded mandrel. This ensures a precise assembly, each and every time.
